Here are examples of our latest utility Trailers
Please contact us with your specific requests, and we will prepare a free estimate.
Or for more information, call us at: 780-479-0604
Or send inquiries to: 12605-66st Edmomton, Alberta T5B-1K5
We build single axle utility Trailers in three weight
3,500 LB GVW
4 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
3,500 LB AXLE C/W 10" X 2 1/4 ELEC. BRAKES 5 ON 4.5HUB DRUMS
2" BALL COUPLER 5.000 LB RATED
5,000 LB SWING AWAY JACK
ONE FOOT ANGLE FRONT RAIL 2 X 2 X 1/4
STAKE POCKETS & RUB RAIL

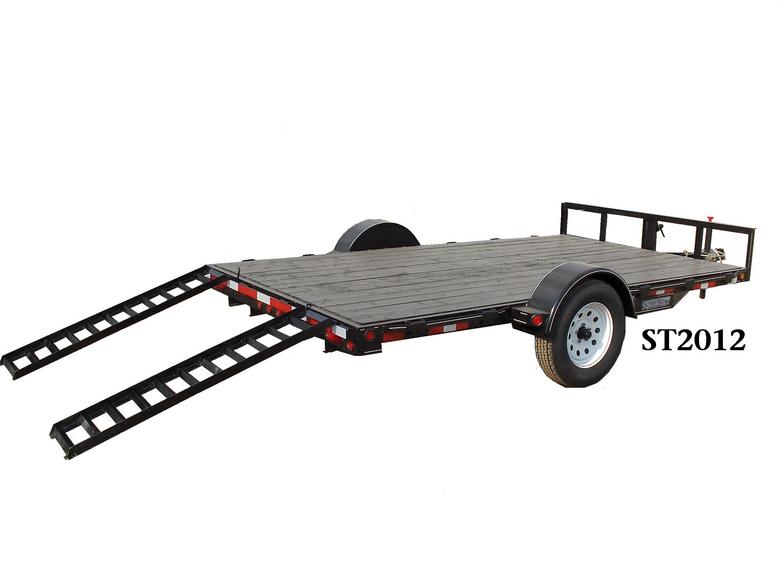

1' - 4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 5' TO 6'8"

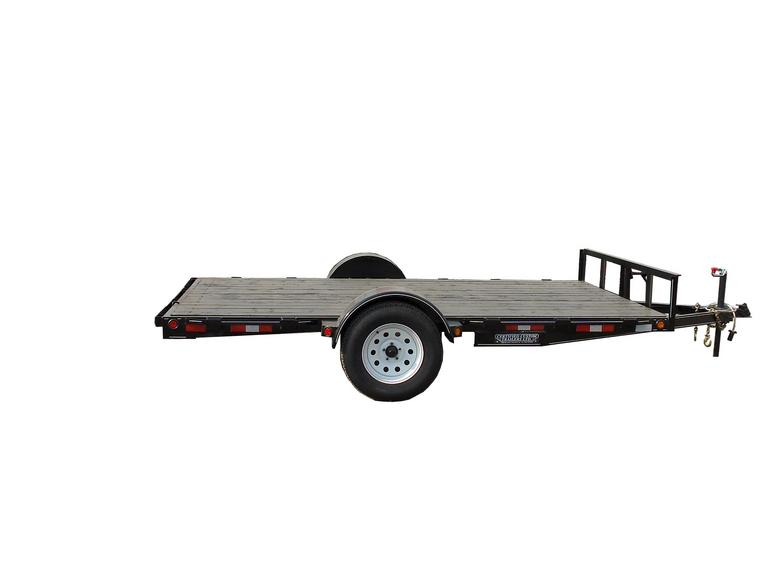

DECK LENGTH FROM 10' TO 14' 2,000 LB GVW
4 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
3,500 LB AXLE C/W 5 ON 4.5 IDLER HUBS
2" BALL COUPLER 5.000 LB RATED
5,000 LB SWING AWAY JACK
ONE FOOT ANGLE FRONT RAIL 2 X 2 X 1/4
STAKE POCKETS & RUB RAIL
1 - 4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 5' TO 6'8"
DECK LENGTH FROM 10' TO 14' 5,000 LB GVW
5 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
6,000 LB AXLE C/W 12" X 2" ELEC. BRAKES 6 ON 5.5HUB DRUMS
2" BALL COUPLER 5.000 LB RATED
5,000 LB DROP FOOT JACK
ONE FOOT ANGLE FRONT RAIL 2 X 2 X 1/4
STAKE POCKETS & RUB RAIL
4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 5' TO 6'8"
DECK LENGTH FROM 10' TO 14'
