SNOW MOBILE TRAILERS Here are examples of our latest snow mobile trailers
Please contact us with your specific requests, and we will prepare a free estimate.
Or send inquiries to: 12605-66st edmomton, Alberta t5b-1k5
We build single axle Quad Trailers in three weight classes 2,000 LB GVW
4 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
3,500 LB AXLE C/W 5 ON 4.5 IDLER HUBS

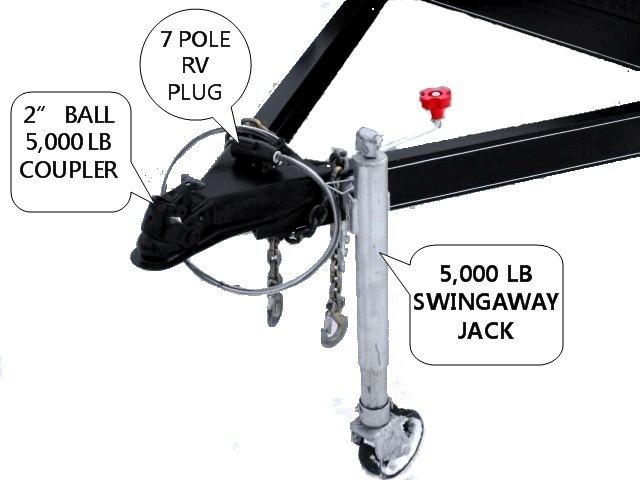

2" BALL COUPLER 5.000 LB RATED
5,000 LB SWING AWAY JACK
V FRONT FOR DRIVE OFF
STAKE POCKETS & RUB RAIL
1 - 4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 7' TO 8'
DECK LENGTH FROM 10' TO 14' 3,500 LB GVW
4 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
3,500 LB AXLE C/W 10" X 2 1/4 ELEC. BRAKES 5 ON 4.5HUB DRUMS
2" BALL COUPLER 5.000 LB RATED
5,000 LB SWING AWAY JACK
V FRONT FOR DRIVE OFF
STAKE POCKETS & RUB RAIL
1' - 4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 7' TO 8'
DECK LENGTH FROM 10' TO 14' 5,000 LB GVW
5 " CHANNEL IRON SUB FRAME
2" X 3" TUBE IRON TOP DECK
6,000 LB AXLE C/W 12" X 2" ELEC. BRAKES 6 ON 5.5HUB DRUMS
2" BALL COUPLER 5.000 LB RATED
5,000 LB DROP FOOT JACK
V FRONT FOR DRIVE OFF
STAKE POCKETS & RUB RAIL
4' X 6' RAMP
OR 2 - 1' X 6' RAMPS
FLUSH MOUNT MARKER & TAIL LIGHTS
2" X 6" WOOD DECK
BUILT IN SIZES
DECK WIDTH FROM 7' TO 8'
DECK LENGTH FROM 10' TO 14'
